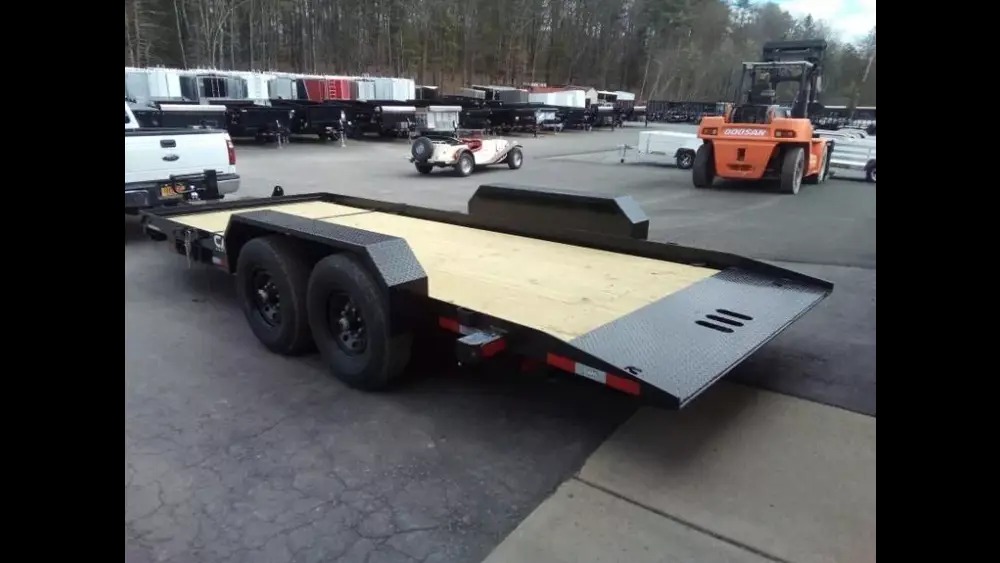

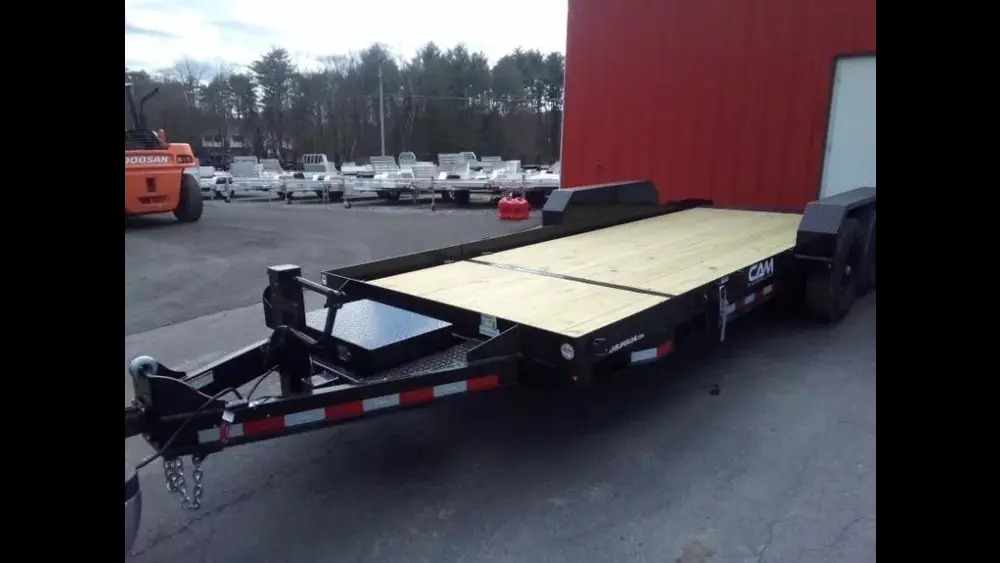

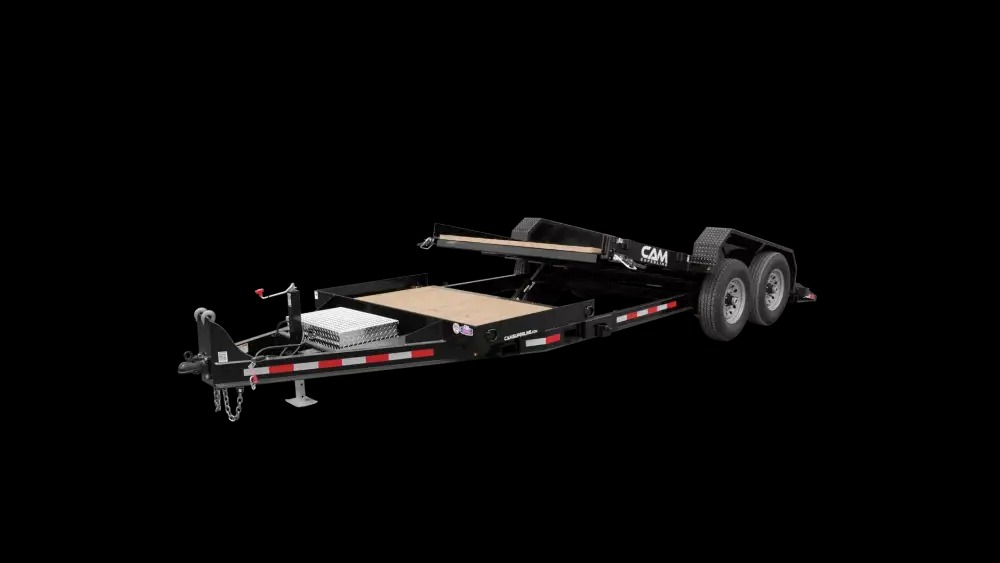

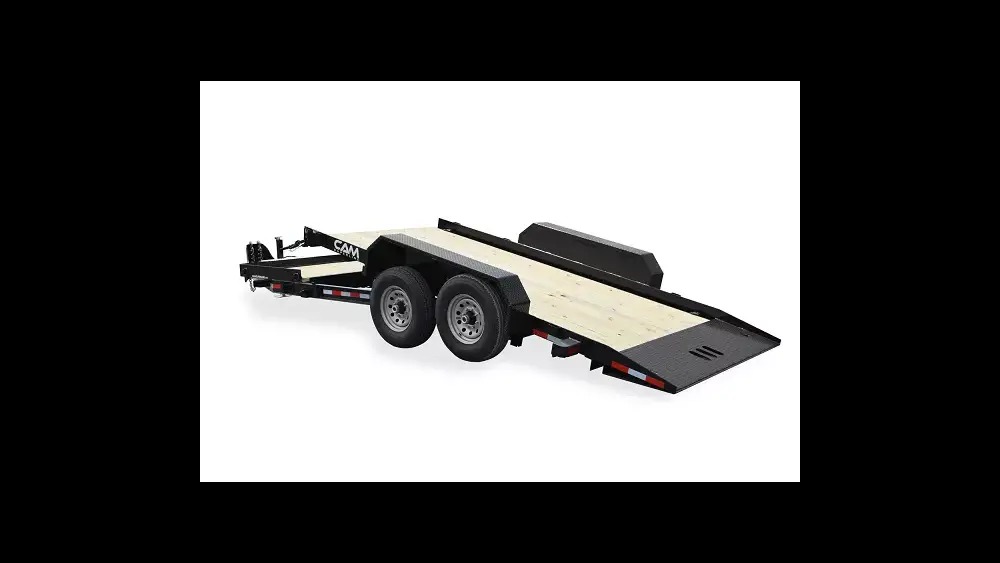

2025 Cam Superline 7 TON XTRA WIDE SPLIT TILT 16' + 4' STAT - 4176

CAM SUPERLINE 7 TON SPLIT TILT DECK BETWEEN EXTRA WIDE 16' TILT + 4' STATIONARY WITH PALLET FORK CARRIER 83" USABLE DECK WIDTH

GVW: 15,400 LBS EMPTY WEIGHT: 3,610 LBS PAYLOAD: 11,790 LBS
Split Deck Tilt Trailers are specially designed for hauling skid steers and compact tractors with the easy to use tilting deck for loading and unloading of your machinery, as well as a fixed 4' Stationary portion of the deck for convenient hauling your attachments such as pallet forks, loader buckets, backhoes, and more!

STANDARD FEATURES + OPTIONS:

TANDEM 7K ELECTRIC BRAKE TORSION RUBBER RIDE AXLES WITH EZ LUBE HUBS
EXTRA WIDE DECK WIDTH 83" USABLE
12" NEVER ADJUST ELECTRIC BRAKES ALL WHEELS
16' TILTING DECK + 4' STATIONARY DECK

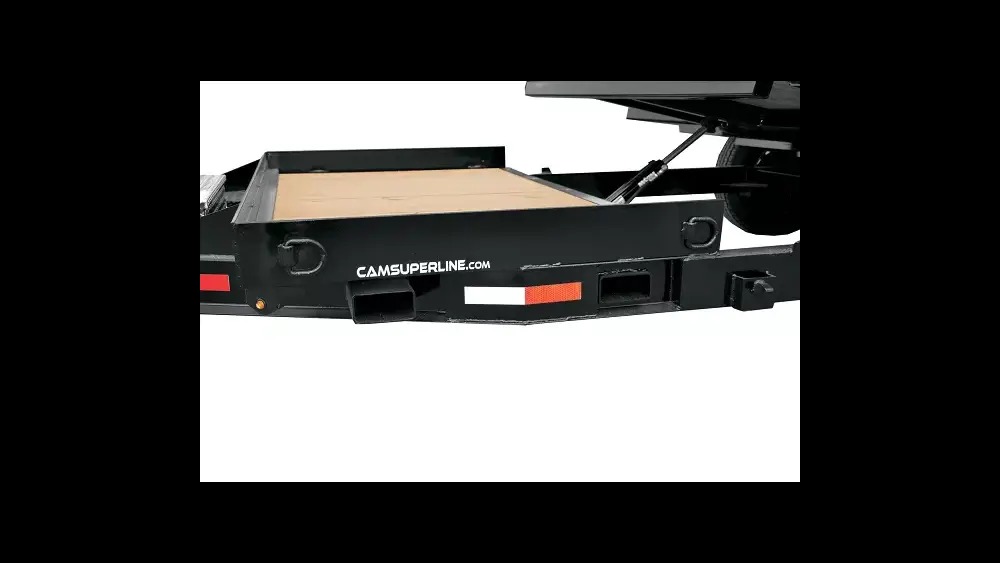

PALLET FORK CARRIER PIERCED IN FRAME ON STATIONARY DECK
ADJUSTABLE 2 5/16" BALL COUPLER OR PINTLE RING
H/D SAFETY CHAINS WITH SLIP LATCH
12K BOLT ON DROPLEG JACK
2" PRESSURE TREATED PLANK DECKING
TONGUE MOUNTED LOCKABLE TOOL BOX
7 WAY MOLDED RV STYLE FRONT PLUG
SEALED MODULAR WIRING HARNESS
LED DOT COMPLIANT LIGHTING
6 H/D WELD ON D-RINGS
2 REAR MOUNTED BANJO EYE TIE DOWNS
6 WELD ON STAKE POCKETS
REVERSE ANGLE ANGLE KNIFE EDGE METAL APPROACH PLATE
H/D DIAMOND PLATE STEEL REMOVABLE FENDERS
ST235/80R16 LRE RADIAL TIRES
16" H/D 8 LUG STEEL WHEELS
SPARE TIRE CARRIES MOUNTED CURBSIDE FRONT
MULTI LEAF SLIPPER SPRING SUSPENSION
2 PART EPOXY PRIMER
2 PART POLYURETHANE GLOSS BLACK PAINT FINISH

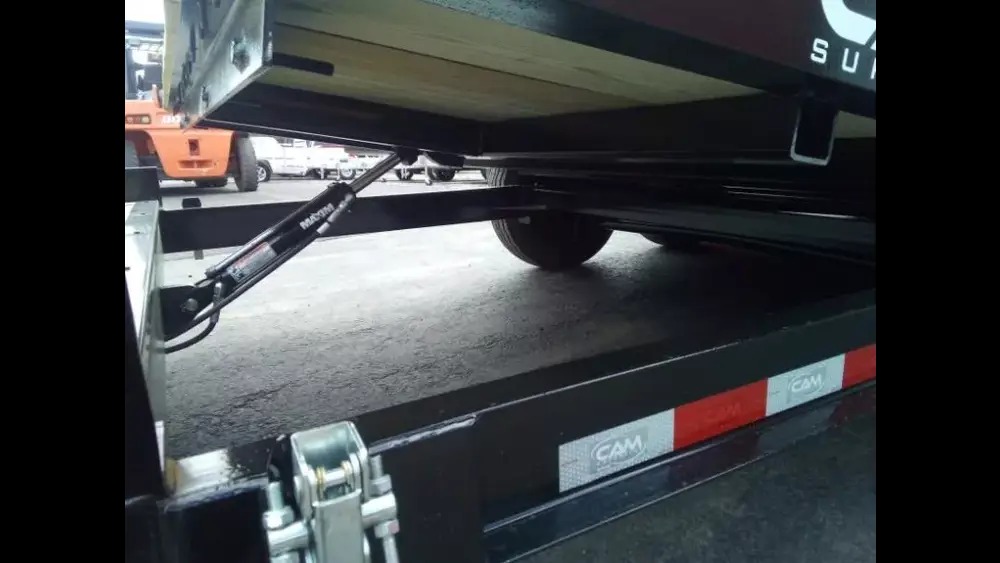

ADJUSTABLE HYDRAULIC CUSHION CYLINDER WITH FLOW CONTROL VALVE

3 YEAR CAM SUPERLINE FACTORY LIMITED WARRANTY

While we strive to represent our trailers with 100% accuracy - please call to confirm details of trailer.
