2026 Belmont Trailers DLX8216-14K - 7514
Get in Touch
AT A GLANCE

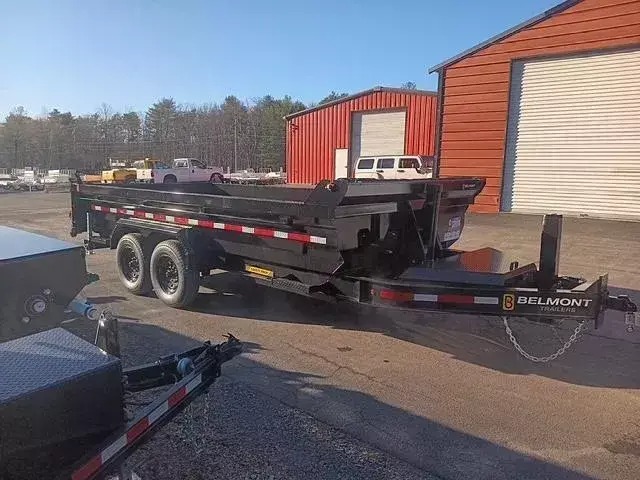

BELMONT DLX8216-14K EXTREME DUTY LOW PROFILE DUMP TRAILER WITH FLARED EXTRA WIDE SIDES. THIS DESIGN IS GREAT FOR ADDED VOLUME. 82" WIDE ON THE FLOOR WHICH FLARES OUT TO 90" AT THE TOP. THIS TRAILER IS
Industry
Trailer
Make
Belmont Trailers
Category
Dump Trailers
Year
2026
Model
DLX8216-14K
Trim
Base
Stock
7514
Subcategory
Dump Trailers
Description
2026 Belmont Trailers DLX8216-14K
DLX - Low Profile Dump HD
DLX series dump trailers are built for performance and durability and engineered to meet the toughest demands of today’s hauling needs. This next-generation trailer combines cutting-edge technology, industry-first features, and enhanced design to deliver unmatched functionality and durability.
Features May Include:
- Heavy Duty 8" I-Beam Frame (10” on 20K)
- 24" High 12ga Strenx Formed Walls

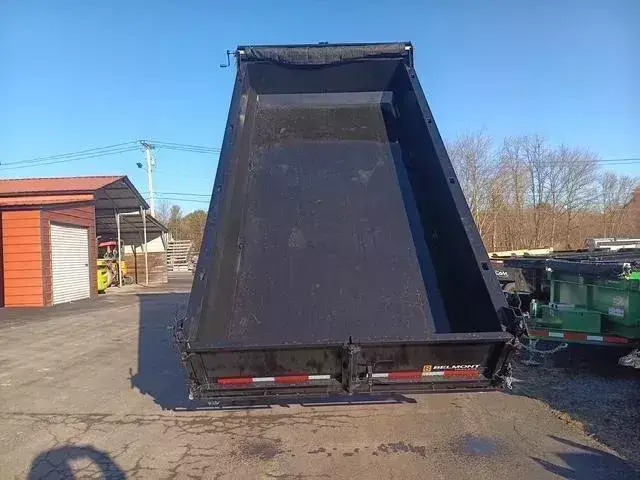

- Low Profile 5-Stage Front Telescopic Cylinder
- 11ga Dent Resistant Hardox Floor

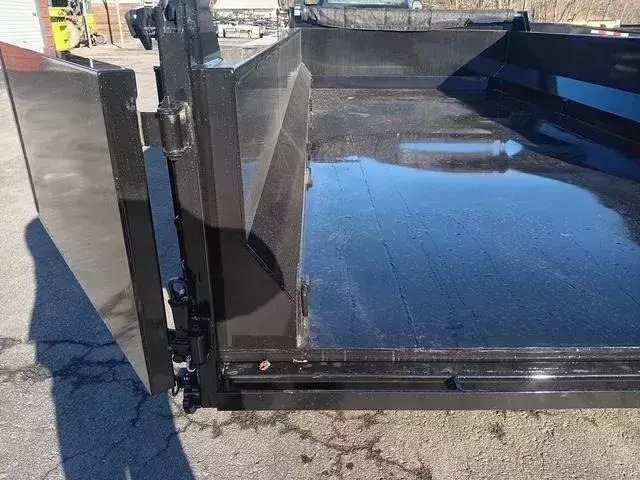

- 3-Way Tailgate- Barn Doors, Spread/Dump and Tailgate

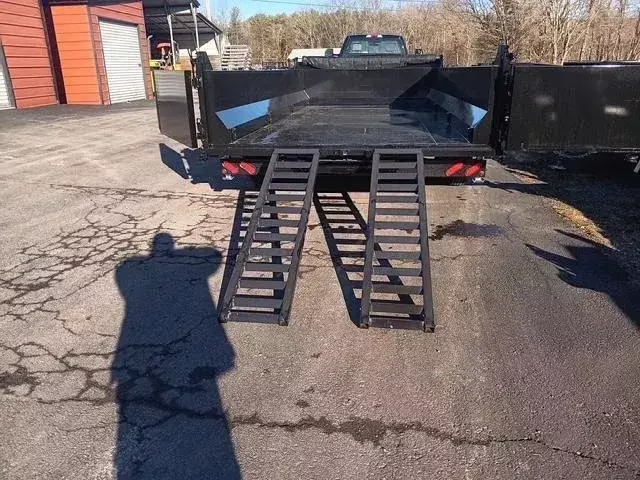

- 6’ Slide-In Ladder Ramps
- Reinforced Enclosed Top Rail With Stake Pockets

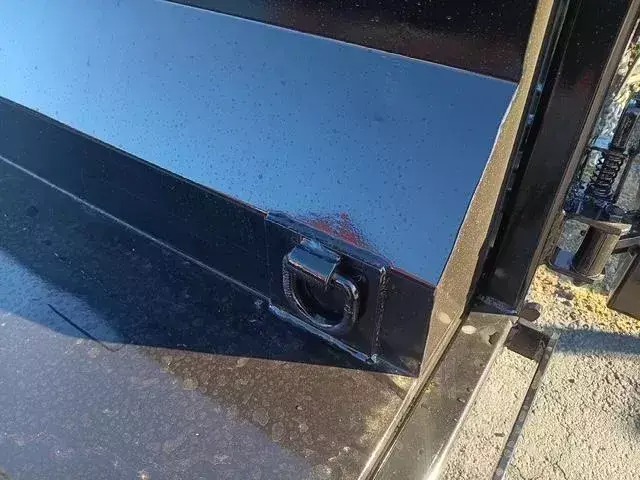

- (4) D-Rings Welded On Side Wall (3) D-Rings on 12’ Models
- Dexter EZ Lube Axles with Self Adjusting Brakes
- Mod Wheels and Radial Tires

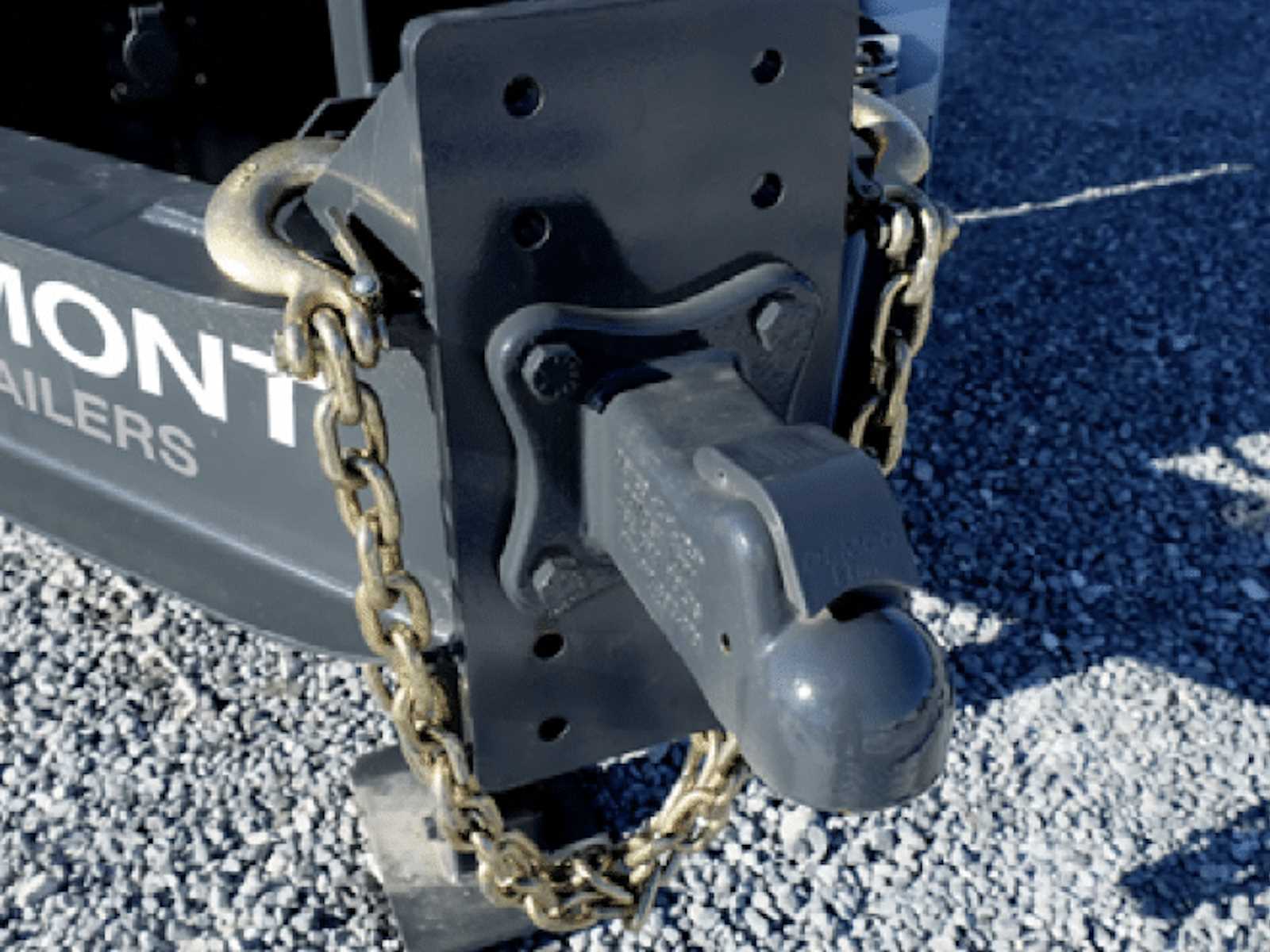

- Demco 2⁵/₁₆" Adjustable Coupler, Flat Plate Mount
- Removable Zinc Plated Safety Chains with Stow Hooks
- 12K Hydraulic Jack

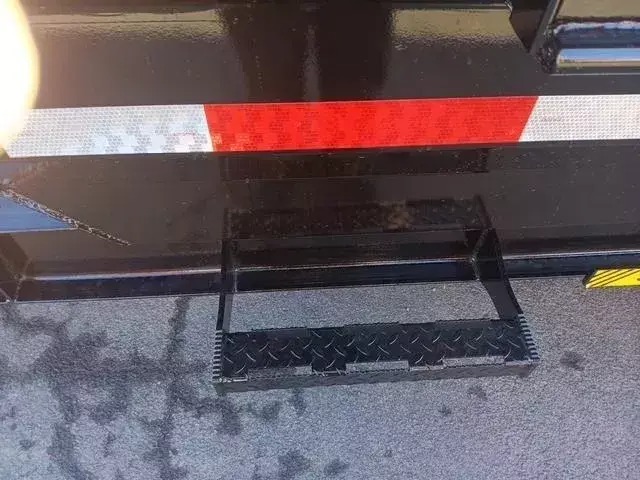

- Front & Rear Mounted Side Steps
- High-Quality Urethane Paint Primer and Top Coat
- Sealed Modular Wiring Harness
- Grommet Mounted LED Lights
- Under-bed Tool Storage Compartment

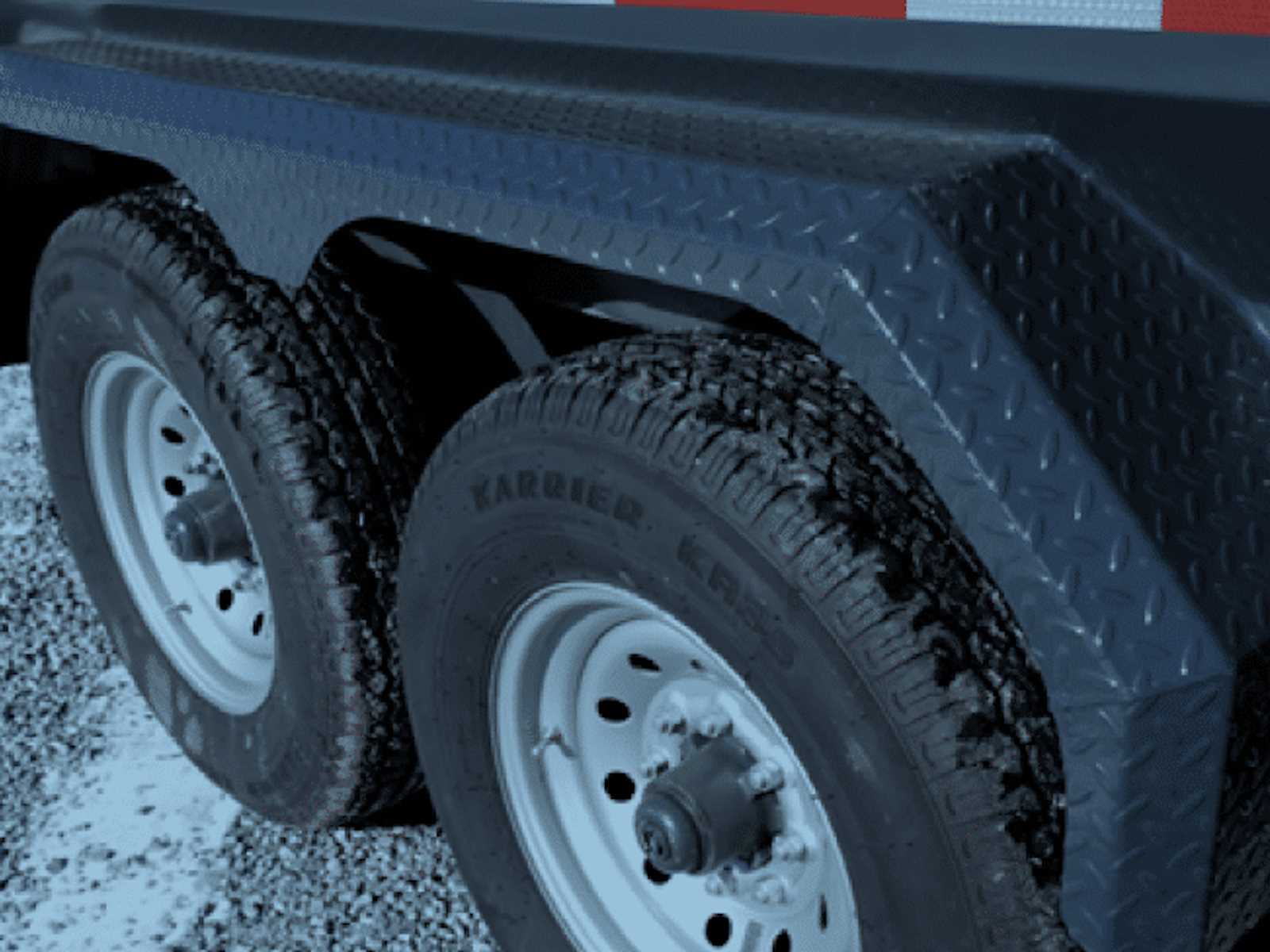

- 11ga Diamond Plate Fenders

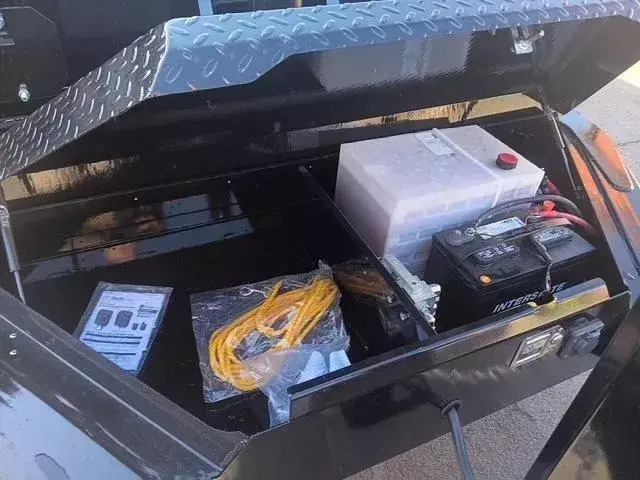

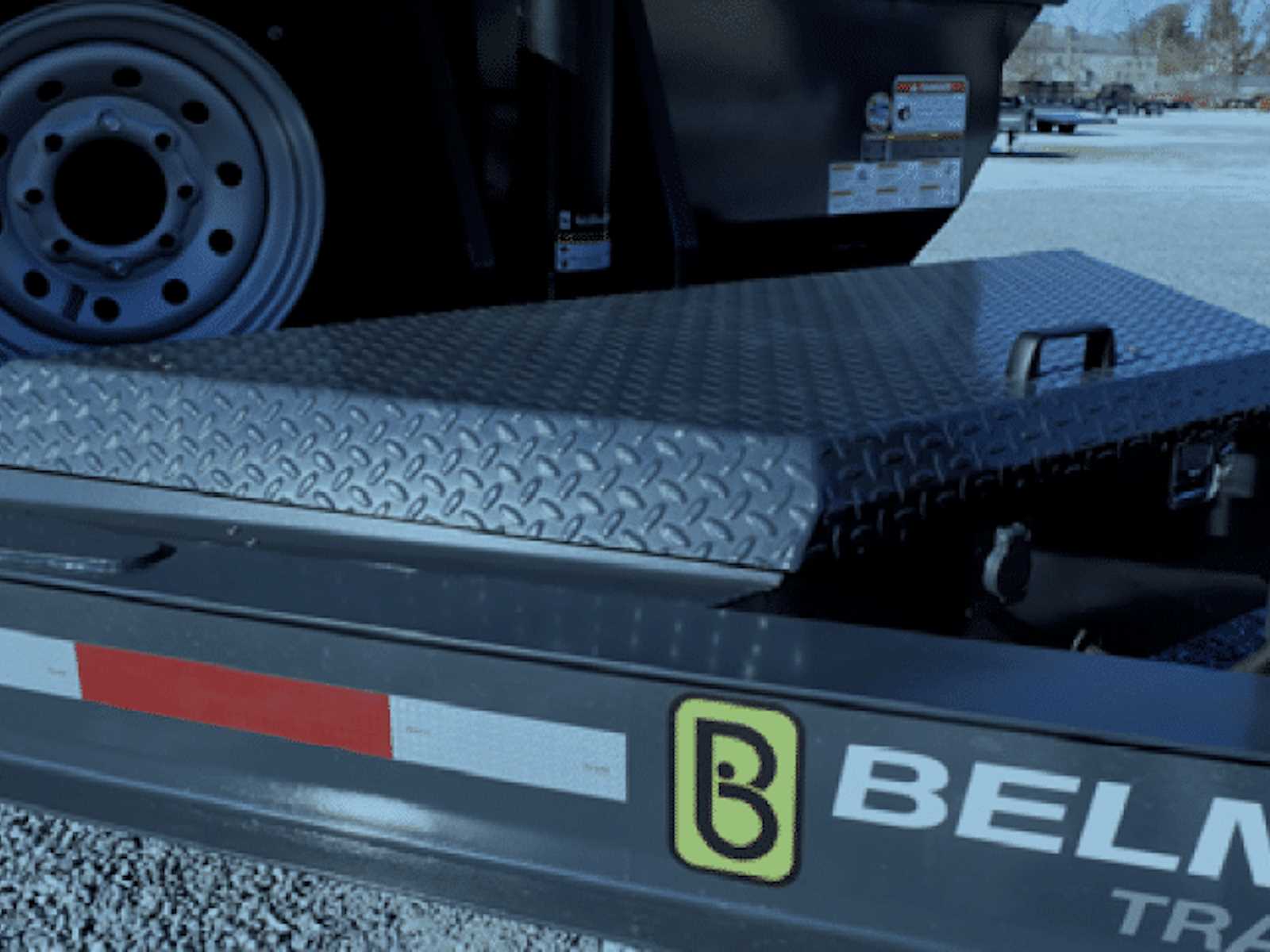

- Lockable Toolbox with Separate Compartment for Hydraulics
- DLH 12V Hydraulic Power Unit (High Flow)
- 12V Deep Cycle Battery and Onboard Battery Charger
- Integrated Tarp Valance
- Spare Tire Mount
- Rear Support Stands
- Mesh Tarp And Roller Kit
Available Options:
- Aluminum Wheels / Radial Tires
- Spare Tire and Wheel
- Torsion Axle Upgrade
- Hydraulic Disc or Drum Brakes
- Adjustable 4-Bolt Pintle Ring ILO 2⁵/₁₆" Adjustable Coupler
- No Ramps and Ramp Slides
- Tarp Anti Sail Bar
- 24" High Mesh Side Extensions
- 48" High Sides
- Gooseneck Hitch ILO A-Frame

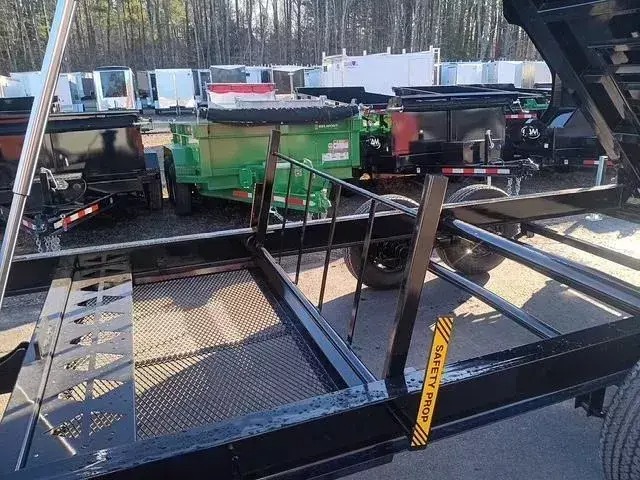

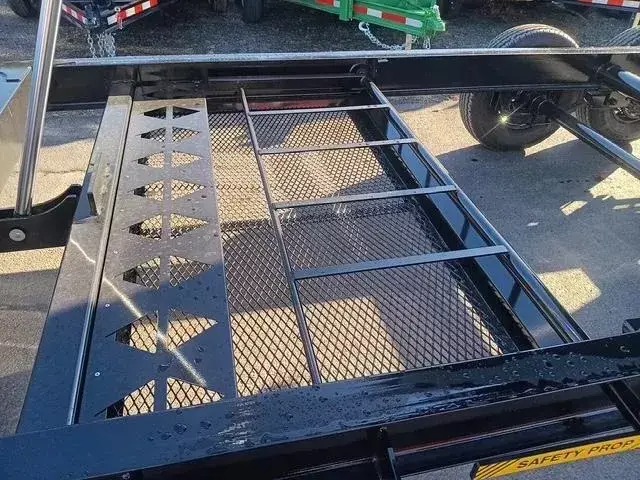

- 6’ Stationary Deck In Front of Dump Bed With Mesh Side Ramp
- Solar 5-Watt Battery Charger
- Formed Steel Tarp Cover
- Wireless Remote
- D-Ring, Weld On, Additional
- Hot Dipped Galvanized Finish (Subframe Only)
Dealer Notes
BELMONT DLX8216-14K EXTREME DUTY LOW PROFILE DUMP TRAILER WITH FLARED EXTRA WIDE SIDES. THIS DESIGN IS GREAT FOR ADDED VOLUME. 82" WIDE ON THE FLOOR WHICH FLARES OUT TO 90" AT THE TOP. THIS TRAILER IS LOADED WITH STANDARD FEATURES. SEE FEATURES BELOW.
GVW: 14,000 LBS EMPTY WEIGHT: 4,490 LBS PAYLOAD: 9,510 LBS
STANDARD FEATURES + OPTIONS:

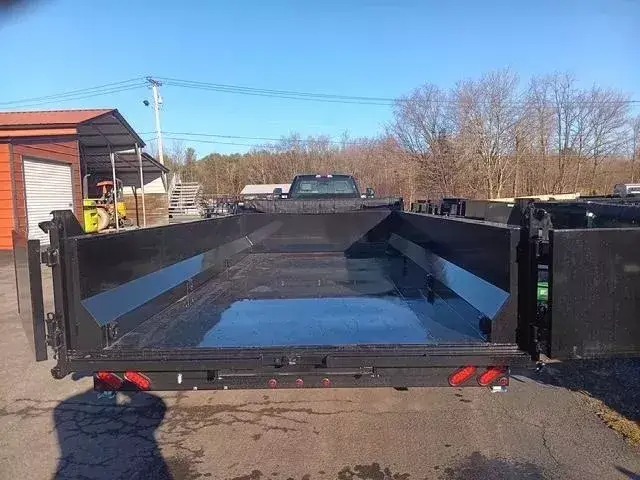

82" / 90" WIDE X 16' LONG LOW PROFILE DUMP
2 PART EPOXY PRIMER / 2 PART POLYURETHANE GLOSS BLACK PAINT FINISH / BAKED ON
ADJUSTABLE BALL COUPLER OR PINTLE RING
12K HYDRAULIC JACK / BOLT ON
SINGLE 5 STAGE FRONT PISTON
TANDEM 7K DEXTER AXLES WITH EZ LUBE HUBS
12" NEVER ADJUST ELECTRIC BRAKES ALL WHEELS
ST235/80R16 LRE RADIAL TIRES
16" BLACK MODULAR STEEL 8 LUG WHEELS
SPARE TIRE CARRIER MOUNTED ON FRONT OF BOX
DUAL PURPOSE EXTRA LARGE FRONT TOOL BOX / PUMP BOX - 2 COMPARTMENTS
REAR PULL OUT H/D RAMPS
8 H/D WALL MOUNTED D-RINGS
11 GAUGE HARDOX DENT RESISTANT HI TENSILE FLOORING

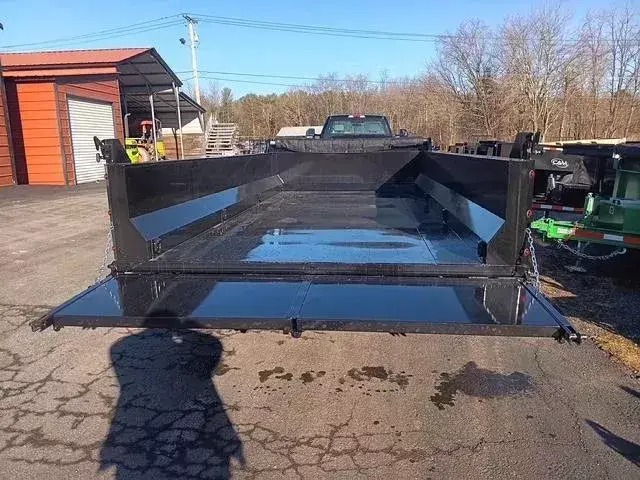

3 WAY COMBO GATE
MESH TARP KIT + GREASABLE BEARINGS
LARGE UNDER BODY TOOL STORAGE TRAY WITH LID
2 REAR DROP DOWN STABILIZER LEGS
4 SIDE MOUNTED FRONT + REAR CLEATED STEPS
EXTREME DUTY TOP RAIL WITH STAKE POCKETS RECESSED
7 WAY MOLDED FRONT PLUG
SEALED MODULAR WIRING HARNESS

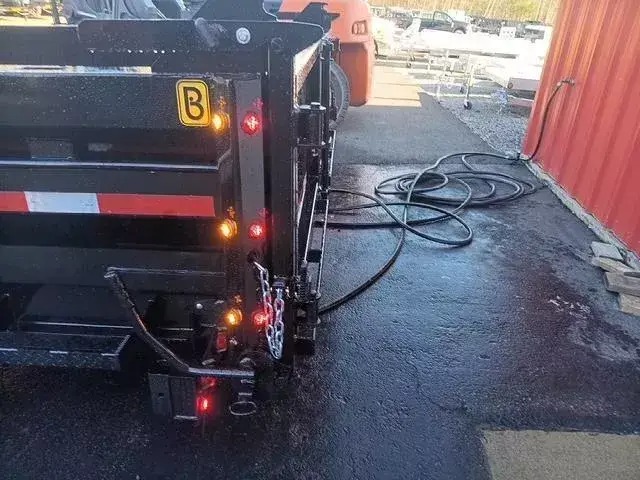

LED DOT COMPLIANT LIGHTING / ADDITIONAL LED MARKER LIGHTS ON CORNERS
MULTI LEAF SLIPPER SPRING SUSPENSION
12 VOLT DEEP CYCLE MARINE BATTERY
110 VOLT BATTERY CHARGER / MAINTAINER
FULL LENGTH 3/4" TIE DOWN RAIL
5 YEAR BELMONT FACTORY LIMITED WARRANTY
Interior Height: 2' or 24.00"
Weight: 4490 lbs
Axle Capacity: 7000 lbs
Info
Condition
New
Location
Trailers LLC
VIN
50PAD1438TL007514
Dry Weight
4,490 lbs
Color
Black
Hitch Type
Adjustable ball coupler or pintle ring
Axles
Tandem 7,000-lb Dexter axles
Length
16 ft
Width
82 in floor / 90 in top
Suspension
Multi-leaf slipper spring suspension
Wheels
16" black modular steel 8-lug wheels
Tires
ST235/80R16 LRE radial tires
Rear Door
3-way combo gate
Floor
11-gauge Hardox dent-resistant high-tensile flooring
Gvwr
14,000 lbs
Axle Capacity
7,000 lbs
Payload Capacity
9,510 lbs
Trailer Material
Steel
Specifications
GVWR
14000 lbs
Width
Bed: 82 in | Overall: 102 in
Frame
Heavy Duty 8 in I-Beam Frame
Fenders
11ga Diamond Plate Fenders
Walls
24 in High 12 GA Strenx Formed Walls
Electrical
DLH 12V Hydraulic Power Unit (High Flow)
Finish
High-Quality Urethane Paint Primer and Top Coat
Max Load
8850 lbs
Height
Bed: 27 in
Dry Weight
5150 lbs
Gate/Door
3-Way Tailgate—Barn Doors, Spread/Dump and Tailgate
Coupler
Demco 2⁵/₁₆ in Adjustable Coupler, Flat Plate Mount
Ramps
6 ft Slide-In Ladder Ramps
Battery
12V Deep Cycle Battery and Onboard Battery Charger
Cylinder
Low Profile 5-Stage Front Telescopic Cylinder
Length
Bed: 16 ft | Overall: 22 ft
D-Rings
4 D-Rings Welded On Side Wall
Axles
Type: 7K E-Z Lube | Quantity: 2
Wheels
Mod Wheels and Radial Tires
Safety Chains
Removable Zinc Plated Safety Chains with Stow Hooks
Floor
11 GA Dent Resistant Hardox Floor
Lights
Grommet Mounted LED Lights
Step
Front & Rear Mounted Side Steps
