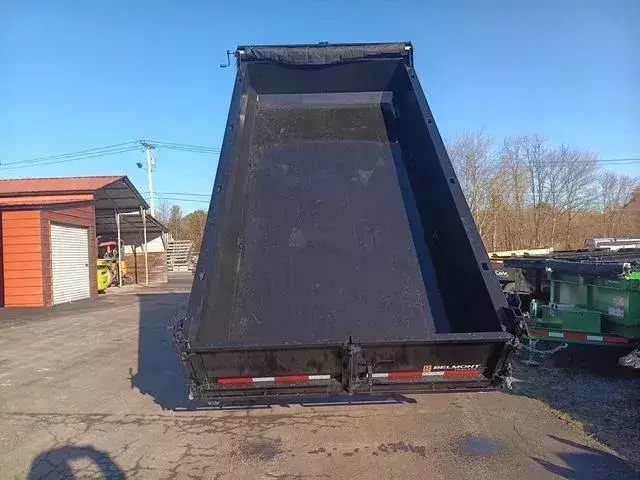

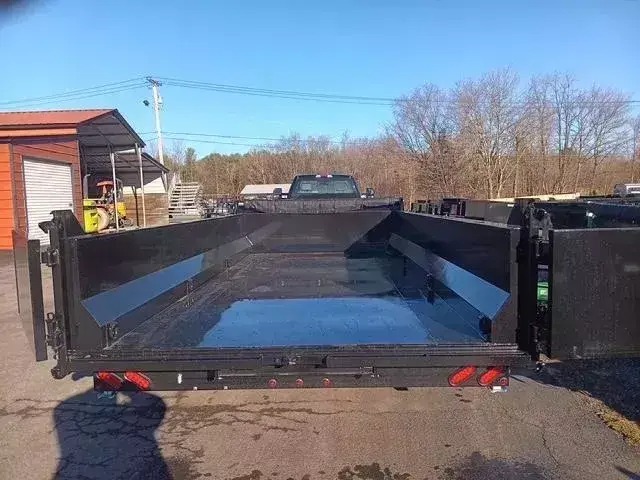

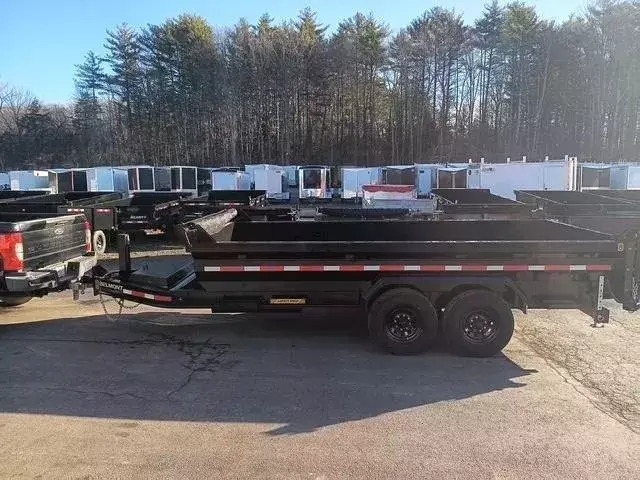

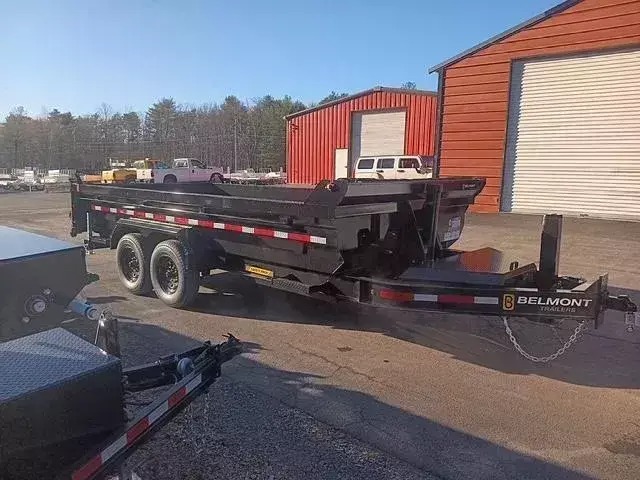

2026 Belmont Trailers DLX8216-14K LP XTRA WIDE SUPER DUTY DUMP- 7873

BELMONT DLX8216-14K EXTREME DUTY LOW PROFILE DUMP TRAILER WITH FLARED EXTRA WIDE SIDES. THIS DESIGN IS GREAT FOR ADDED VOLUME. 82" WIDE ON THE FLOOR WHICH FLARES OUT TO 90" AT THE TOP. THIS TRAILER IS LOADED WITH STANDARD FEATURES. SEE FEATURES BELOW.

GVW: 14,000 LBS EMPTY WEIGHT: 4,490 LBS PAYLOAD: 9,510 LBS

STANDARD FEATURES + OPTIONS:

82" / 90" WIDE X 16' LONG LOW PROFILE DUMP
2 PART EPOXY PRIMER / 2 PART POLYURETHANE GLOSS BLACK PAINT FINISH / BAKED ON
ADJUSTABLE BALL COUPLER OR PINTLE RING
12K HYDRAULIC JACK / BOLT ON

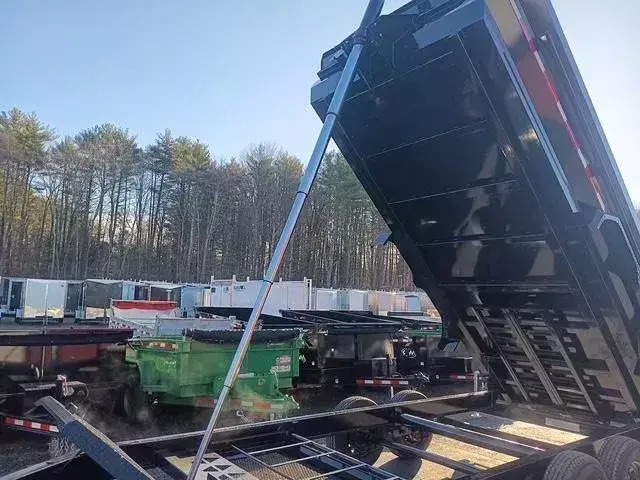

SINGLE 5 STAGE FRONT PISTON
TANDEM 7K DEXTER AXLES WITH EZ LUBE HUBS
12" NEVER ADJUST ELECTRIC BRAKES ALL WHEELS
ST235/80R16 LRE RADIAL TIRES
16" BLACK MODULAR STEEL 8 LUG WHEELS
SPARE TIRE CARRIER MOUNTED ON FRONT OF BOX

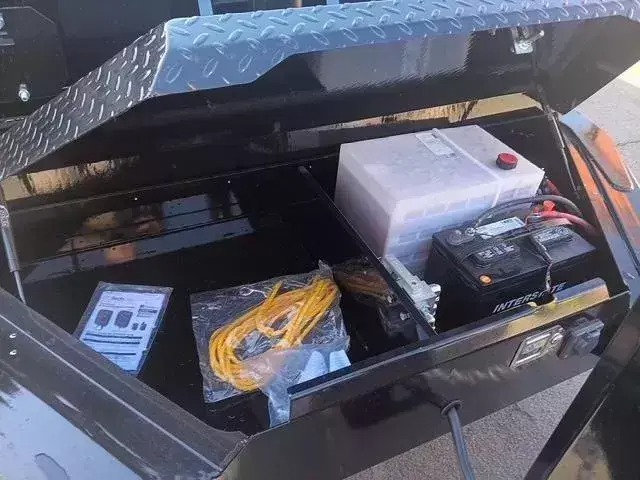

DUAL PURPOSE EXTRA LARGE FRONT TOOL BOX / PUMP BOX - 2 COMPARTMENTS

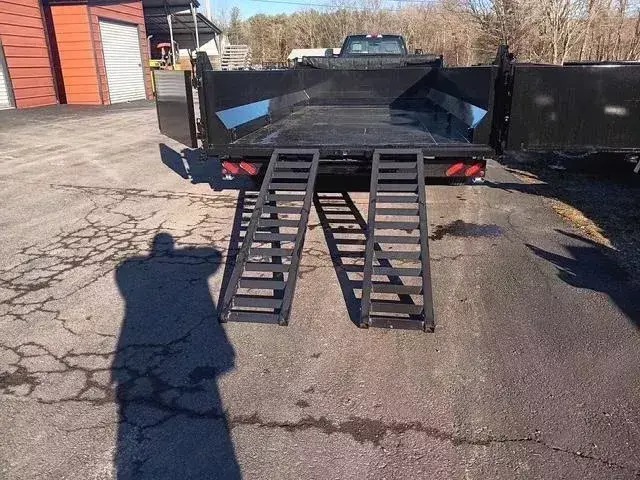

REAR PULL OUT H/D RAMPS

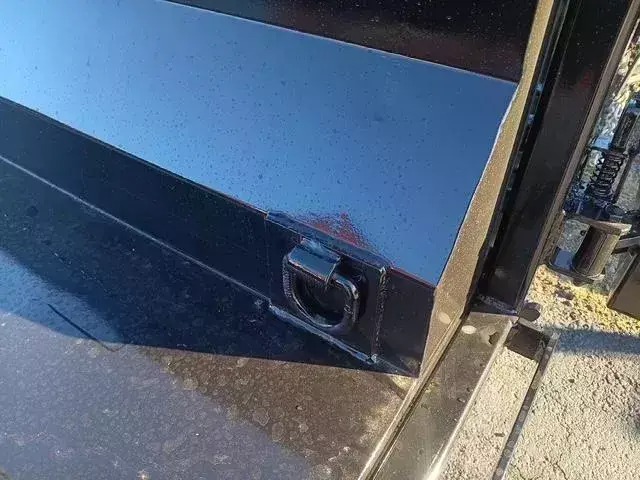

8 H/D WALL MOUNTED D-RINGS
11 GAUGE HARDOX DENT RESISTANT HI TENSILE FLOORING

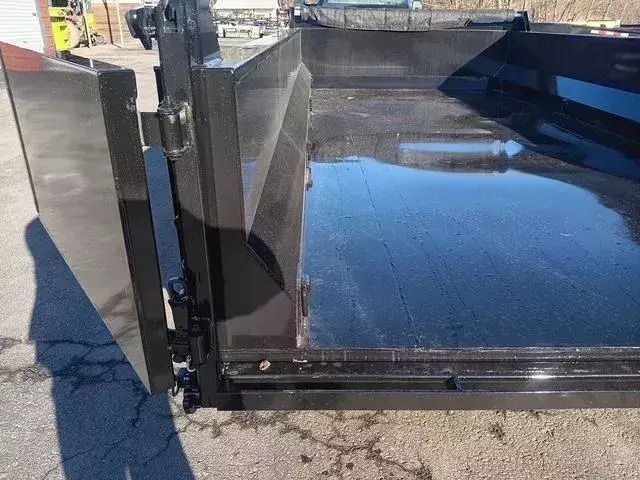

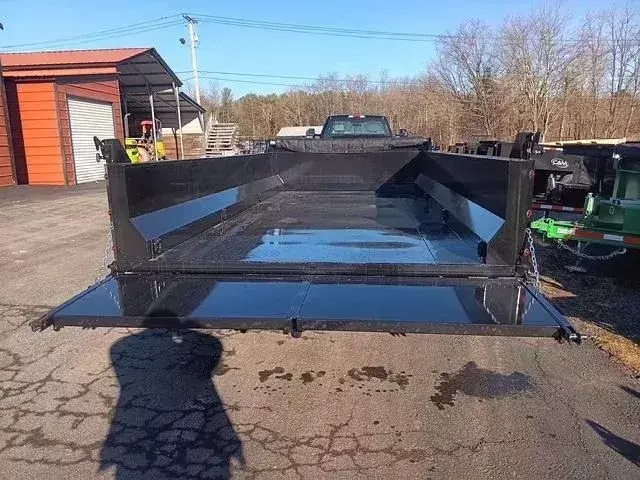

3 WAY COMBO GATE
MESH TARP KIT WITH ANTI SAIL BAR + GREASABLE BEARINGS

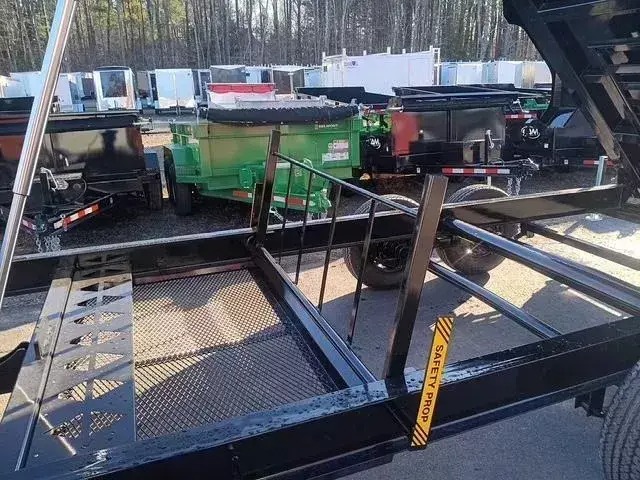

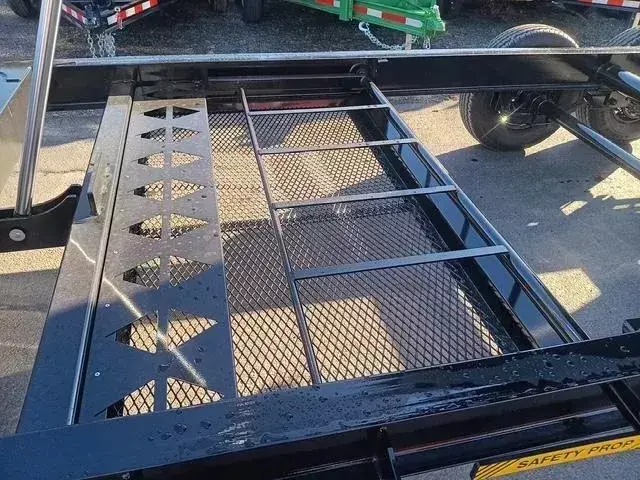

LARGE UNDER BODY TOOL STORAGE TRAY WITH LID
2 REAR DROP DOWN STABILIZER LEGS

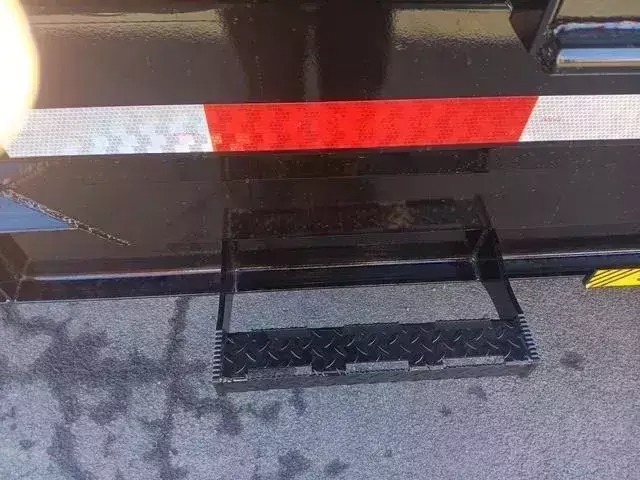

4 SIDE MOUNTED FRONT + REAR CLEATED STEPS
EXTREME DUTY TOP RAIL WITH STAKE POCKETS RECESSED
7 WAY MOLDED FRONT PLUG
SEALED MODULAR WIRING HARNESS

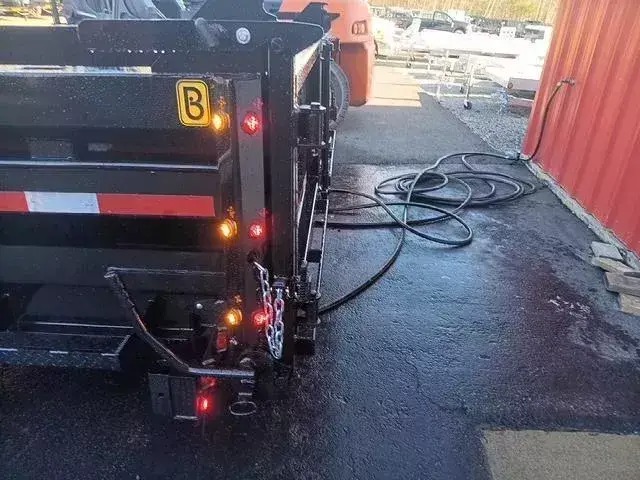

LED DOT COMPLIANT LIGHTING / ADDITIONAL LED MARKER LIGHTS ON CORNERS
MULTI LEAF SLIPPER SPRING SUSPENSION
12 VOLT DEEP CYCLE MARINE BATTERY
110 VOLT BATTERY CHARGER / MAINTAINER
FULL LENGTH 3/4" TIE DOWN RAIL

5 YEAR BELMONT FACTORY LIMITED WARRANTY

Interior Length: 16' or 192.00"

Interior Width: 6' 10" or 82.00"

Interior Height: 2' or 24.00"

Weight: 4490 lbs

Axle Capacity: 7000 lbs
