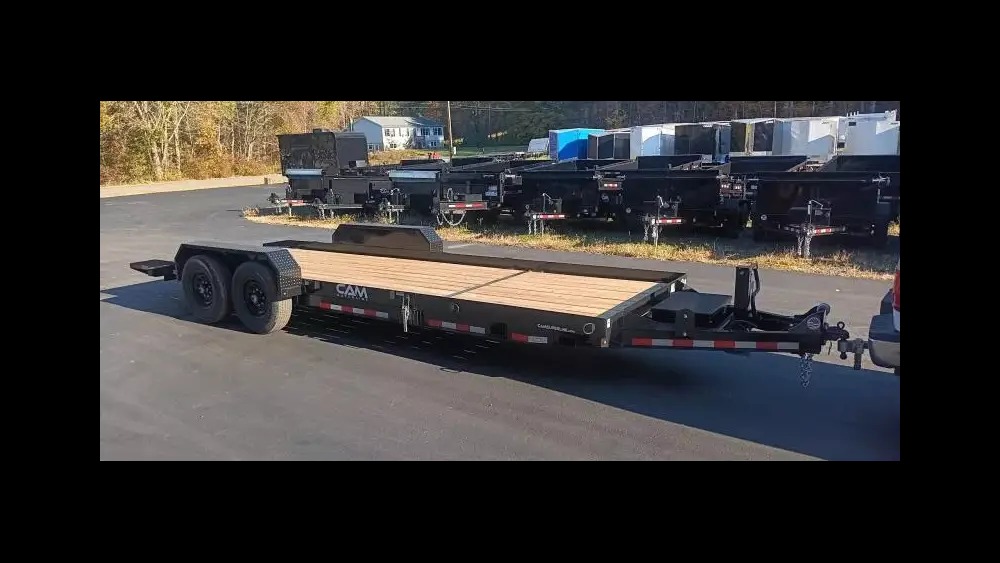

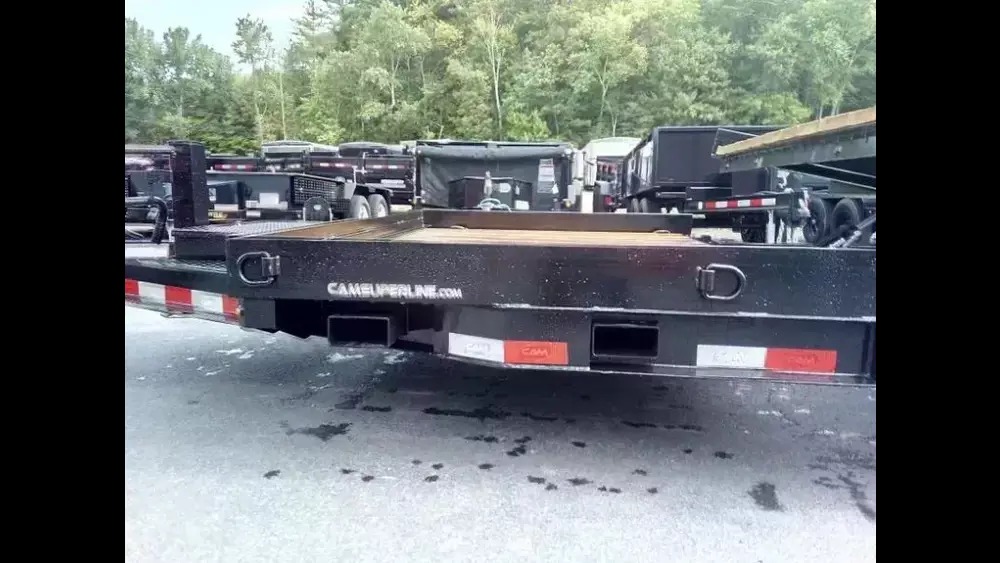

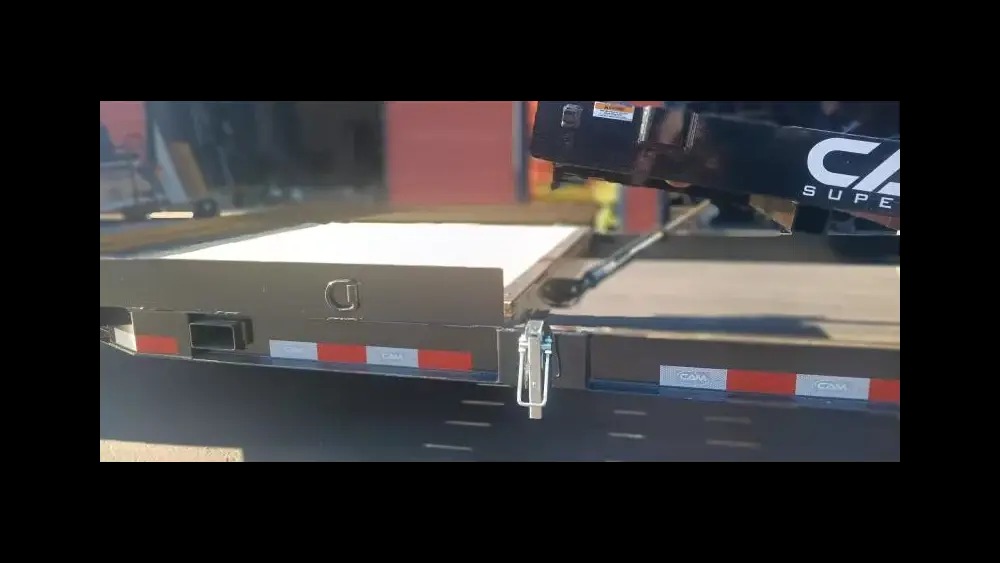

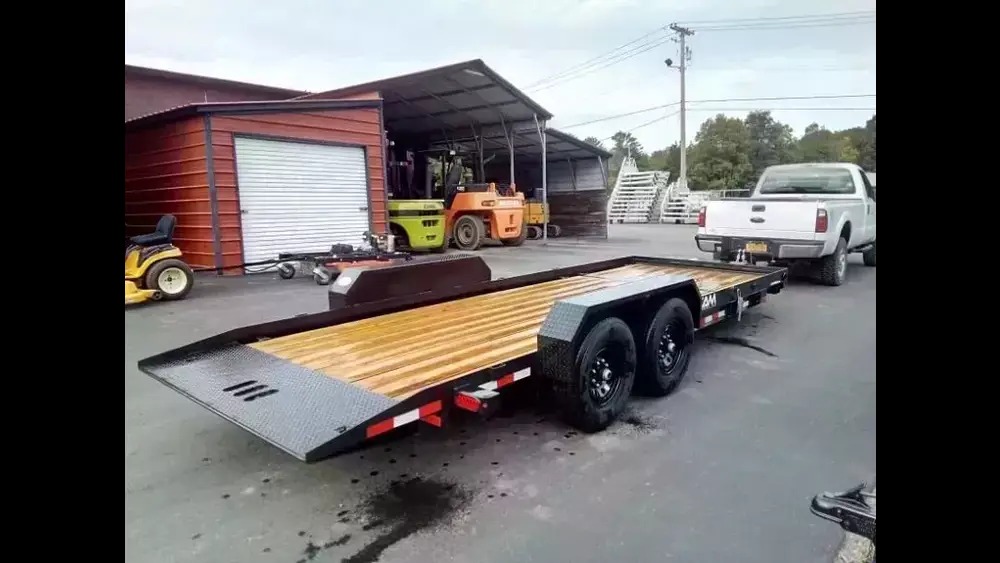

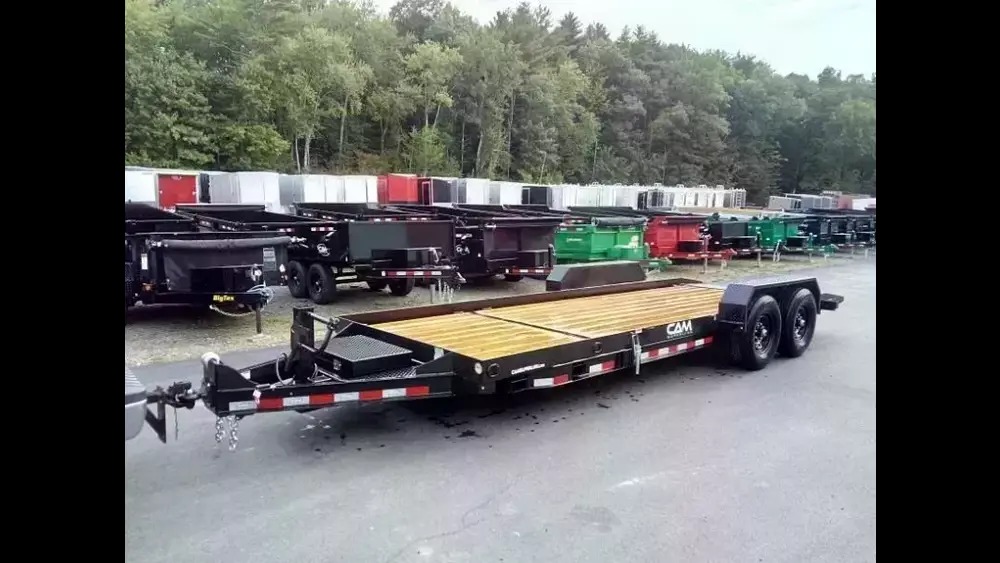

2026 Cam Superline 7 TON SPLIT TILT DECK BETWEEN 16' TILT + 6' STAT - 5815

CAM SUPERLINE 7CAM166STT DECK BETWEEN THE WHEELS SPLIT TILT / 16' TILTING + 6' STATIONARY WITH PALLET FORK CARRIER SPECIAL BUILD WITH THE LONGER STATIONARY DECK. GREAT FOR IMPLEMENTS.

GVW: 15,400 LBS / EMPTY WEIGHT: 3,800 LBS / PAYLOAD: 11,600 LBS

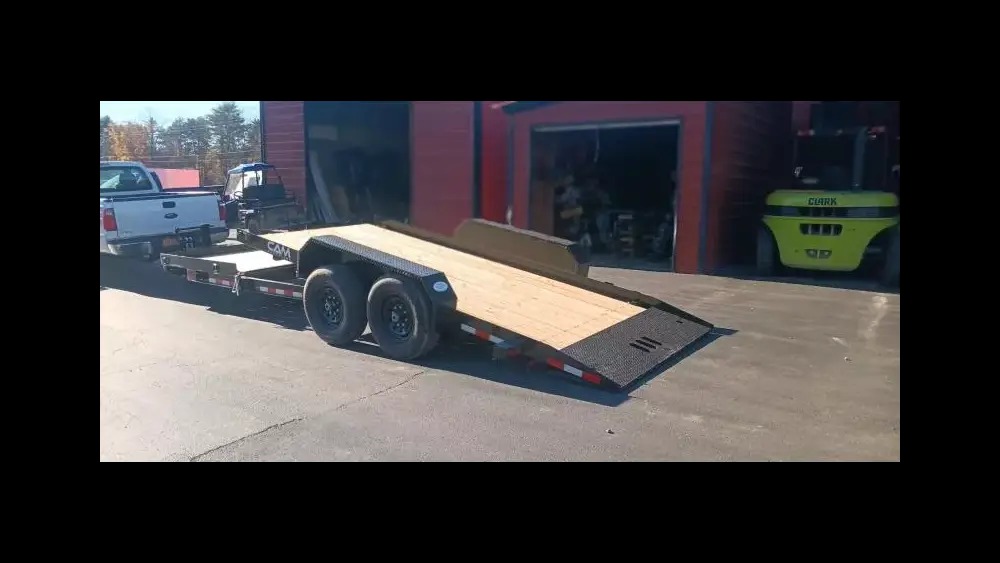

Split Deck Tilt Trailers are specially designed for hauling skid steers and compact tractors with the easy to use tilting deck for loading and unloading of your machinery, as well as a fixed portion of the deck for convenient hauling your attachments such as pallet forks, loader buckets, backhoes, and more!
CAM Superline split deck tilt trailers are built with a durable four-bolt adjustable hitch plate offering changeable height settings, to match the hitch height of your tow vehicle. This model comes standard with a 2-5/16" self-seating ball coupler or an optional 2-1/2" pintle ring.
For ease of operation (and to save you time), our 12,000 lb. top-wind jack reduces cranking with a convenient drop-leg feature. Simply remove the pin, lift the jack leg, and clip the pin back into place.
An innovative Zip trailer breakaway system eliminates fraying, dragging, or breaking. A sealed 7-Way SAE plug, fully wired to a weatherproof junction-box, provides a fast and secure electrical connection to your tow vehicle.
Built for quality, value, and dependability, all CAM Superline trailers come standard with LED lights, a sealed, 1-piece heat-shrunk wiring harness, and a superior 2 component finish featuring an epoxy primer and PPG polyurethane paint providing the ultimate in corrosion resistance and long-lasting durability. Back it all up with a 3-year warranty and it's easy to see - CAM Superline is your partner for the long haul!
7CAM166STT
16' TILTING DECK + 6' STATIONARY DECK
Overall Width: 102"
Usable Deck Width: 81"
Deck Height: 22"
Axle Capacity: 7,000 lbs
Radial Tire Size: 235/80R16LRE
Main Frame: 6" x 4" x 3/8" Angle
Crossmembers: 3" Channel @ 4.1#
Tongue: 6" Channel @ 10.5#
STANDARD FEATURES:
7K Dexter E-Z Lube electric brake Axles
12" Nev-R-Adjust Electric Brakes all wheels
Pallet Fork Carrier Pierced In Frame MOUNTED FRONT IN STATIONARY DECK
Adjustable Hydraulic Cushion Cylinder with flow control Valve
Spare Tire carrier mounted on tongue curbside
H/D Diamond Plate Fenders
12k H/D Bolt on Dropleg Jack
LED Lights - Rubber Mounted
Adjustable 2-5/16" Ball Coupler or Pintle Ring
D-Ring Tie Downs - 5/8" (8)
Lockable tongue mounted Tool Box
2" Pressure Treated Plank Pine Decking
ST235/80R16 LRE RADIAL TIRES
8 Lug Steel SPOKE Wheels
(2) Banjo Eye Tie Downs
Red Zip Breakaway System
Sealed Modular Wiring Harness
7-Way SAE Plug
Safety Chains
2 Part Epoxy Primer
2 Part Polyurethane Paint Finish

3 YEAR CAM SUPERLINE LIMITED WARRANTY

While we strive to represent our trailers with 100% accuracy - please call to confirm details of trailer.
